pulleys

Fixed Pulley

Height: 81mm

Width: 45mm

Weight: 92g

Breaking strength: 22KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 13mm

Certification: CE EN12278 UIAA

Fixed Pulley Stainless Steel

Height: 77mm

Width: 45mm

Weight: 140g

Breaking strength: 22KN

Material: Stainless steel

Maximum rope size: 13mm

Certification: CE EN12278

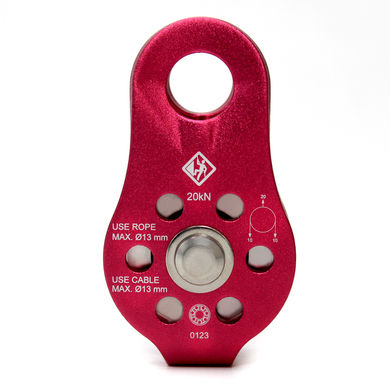

Fixed Pulley With Ball Bearing

Height: 81mm

Width: 44mm

Weight: 136g

Breaking strength: 22KN

Material: Aluminum alloy

Sheave: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 13mm

Maximum cable size: 12mm

Certification: CE EN12278 UIAA

Mobile Small Pulley

Height: 79mm

Width: 58mm

Weight: 120g

Minimum breaking strength: 20KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 11mm

Certification: CE EN12278 UIAA

Big Mobile Pulley Prussik

Height: 120mm

Width: 80mm

Weight: 318g

Minimum breaking strength: 30KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 16mm

Certification: CE EN12278

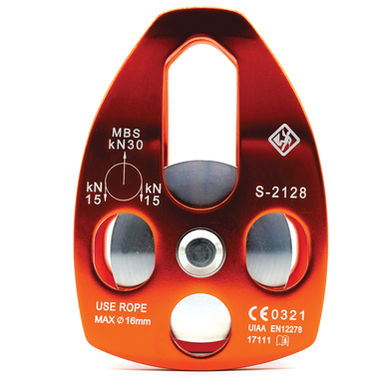

Big Mobile Pulley

Height: 121mm

Width: 82mm

Weight: 240g

Minimum breaking strength: 30KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 16mm

Certification: CE EN12278 UIAA

Big Mobile Pulley With Ball Bearing

Height: 117mm

Width: 83mm

Weight: 250g

Minimum breaking strength: 36KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 13mm

Certification: CE EN12278 UIAA

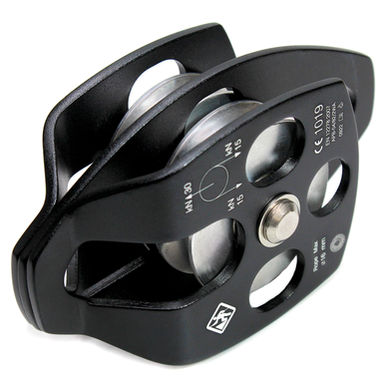

Big Mobile Double Pulley

Height: 143mm

Width: 83mm

Weight: 415g

Minimum breaking strength: 30KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 16mm

Certification: CE EN12278 UIAA

Big Mobile Double Pulley With Ball Bearing

Height: 141mm

Width: 83mm

Weight: 430g

Minimum breaking strength: 36KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 13mm

Certification: CE EN12278 UIAA

Big Mobile Double Pulley With Ball Bearing Prussik

Height: 165mm

Width: 80mm

Weight: 577g

Minimum breaking strength: 40KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 16mm

Certification: CE EN12278

Tyrolean Pulley With Ball Bearing

Height: 85mm

Width: 107mm

Weight: 285g

Minimum breaking strength: 25KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 13mm

Maximum cable size: 12mm

Certification: CE EN12278 UIAA

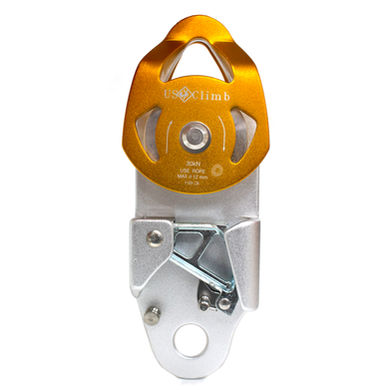

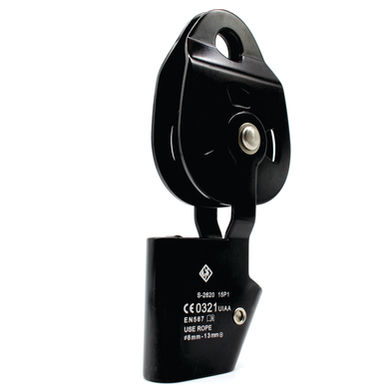

Mobile Pulley With Ball Bearing And Rope Grab

Height: 185mm

Width: 86mm

Weight: 398g

Minimum breaking strength: 25KN

Material: Aluminum alloy

Standart finish: Anodized

Rope size: 8mm - 13mm

Certification: CE EN12278 UIAA

Mobile Double Pulley With Ball Bearing And Rope Grab

Height: 230mm

Width: 83mm

Weight: 800g

Minimum breaking strength: 30KN

Material: Aluminum alloy

Standart finish: Anodized

Rope size: 8mm - 16mm

Fiddle Block Pulley With Swivel
Ball Bearing

Height: 170mm

Width: 60mm

Weight: 259g

Minimum breaking strength: 16KN

Material: Aluminum alloy

Standart finish: Anodized

Maximum rope size: 10mm
